Home /Products/Commercial Ice Maker/Machinery Repair Shops Flake Ice Machine 1 Ton Commercial Ice Maker Machine

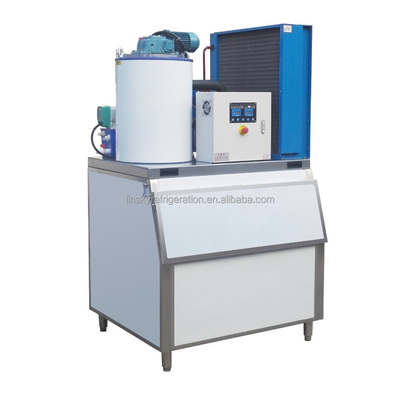

Machinery Repair Shops Flake Ice Machine 1 Ton Commercial Ice Maker Machine

1 Unit
MOQ
$3,500.00(1 - 4 Units) $3,000.00(>=5 Units)
Price
Machinery Repair Shops Flake Ice Machine 1 Ton Commercial Ice Maker Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
Condition: New
Ice Shape: Flake Ice
Voltage: 380V/50Hz/3P
Power: 4.3kw
Dimension(L*W*H): 1100*960*1940mm
Weight: 300 KG
Warranty: 1.5 Years
Key Selling Points: High Productivity
Ice Storage Capacity: 300Kg, 300kg
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1.5 Years
Core Components: Motor, Pump, PLC, Compressor
Compressor Brand: Copeland, Danfoss
Product Name: Flake Ice Machine 1 Ton Commercial Ice Maker Machine
Daily Capacity: 1000kg/24hr
Cooling Way: Air Cooling System
Evaporator Material: Stainless Steel
Refrigerant: R404a/R22
Compressor: Copeland/Emerson
Control System: PLC+Touch Screen
Power Supply: 380V/3P/50Hz
Flake Ice Thickness: 1.5~2.5mm
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Showroom Location: Viet Nam, Philippines, Indonesia, Pakistan, India, Mexico, Russia, Kenya, South Africa, Malaysia, Australia
Certification: Ce
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: For Flake ice machine 1 ton commercial ice maker machine: (1)Use wooden case packing; (2)Total two packages.
Supply Ability: 5 Unit/Units per Month
Product Description
Ice Machine Description

Flake Ice Machine Features - Flake ice machine 1 ton commercial ice maker machine

* Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of refrigerant; * Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency; * The large-area design of low water pan prevents the leakage of water from the bottom of the evaporator; * Install photoelectric switch at the bottom of the evaporator instead of ice bin; * Directly liquid feeding, dry-type evaporation make simple, safe and reliable control; * Integrated modular equipment to facilitate installation and maintenance on the spot; * Make ice from fresh water or seawater, installs on land or onboard vessels; * Ice thickness can be varied by changing the speed of the rotor.
Flake ice machine 1 ton commercial ice maker machine
Model:
LIF-10K
Daily capacity:
1000kg/24hr
Ice storage capacity:
300kg
Working Conditions:
Ambient temperature 35℃, Water temperature 25℃
Power supply:
380V/50Hz/3P, can customized 220V/440V and 50hz/60hz
Operating Power:
4.3kw
Flake ice thickness:
1.5mm~2.5mm
Dimension (Ice machine):
1100mm*820mm*840mm
Dimension (Ice storage):
110mm*960mm*1100mm
Fish frozen flake ice machine 500kg flake ice machine
*Daily Capacity: 500kg/24hrs. *Machine power supply: three phase industrial power supply. *The control system is Siemens PLC, fully automated production, no manual operation. *The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available. *The flake ice machine is a device for direct low-temperature continuous ice making, and the ice temperature is as low as -8℃ or lower, and the efficiency is high. *Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity. *The thickness of flake ice is generally 1.5mm-2.5mm, and it can be used directly without using a crusher.
Ice Machine Application
Flake ice features - Flake ice machine 1 ton commercial ice maker machine
* Irregular flake ice with size about 40mm*40mm and thickness around 1.5mm~2.5mm; * Flake ice temperature approx. -8℃, with great cooling efficiency, fit for perishable product immediate cooling; * Flake ice completely dry, it not easy rapidly freezing together, so easier for storage and distribution; * Flake ice has no acute edges and corners so it will not damage the surface of the cooled object; * Flake ice have large contact area, good mobility, which means large heat exchange surface area, faster and better cooling effect than other types of ice; * Flake ice is easy to crush and has strong plasticity. * Fast ice making speed, can produce ice within 3 minutes after starting machine, don’t need extra person to take off and get the ice; * Flake ice can be made from fresh water or seawater.
Flake ice machine 1 ton commercial ice maker machine
*White attractive appearance; *Sub-cooled, fast product cooling. Temperature approx. -8℃, with greater cooling efficiency. Fit for perishable product immediate cooling; *Completely dry, it won't rapidly freezing together in a low-temperature storage bin or clog screw conveyors or pneumatic delivery systems, easier for storage and distribution; *Large contact area, good mobility, which means large heat exchange surface area, faster and better cooling effect than other types of ice and its flat shape won’t damage the delicate or fragile seafood products; *Thin piece, easy to melt rapidly and dissipate heat, add moisture to mixtures and assist the mixing process; *The thin ice is easy to crush, mold, and shovel.

Flake Ice Applications - Flake ice machine 1 ton commercial ice maker machine

Fish industry, food processing industry, supermarkets, retail shops, bakery, laboratory, chemical and pharmaceutical industry, hospitals, medical offices, concrete mixing plants, skiing ground and other entertainment services etc.
Ice Machine Manufacturing Technique
As shown, motor (01) drives speed reducer (04) running. Ice skate (05), Water distribution pan (06), principle axis (07), water sprinkler (08) and drain pan (13) are driven by reducer and run continuously. From water inlet (03), water flows into water distributor pan (06) then sprinkles water on Ice freezing surface (10) evenly, herein a film of water is formed. While the ice machine is running, refrigerant evaporate in refrigerant runner (02). The temperature of water decreases quickly till a layer of thin ice is formed on ice freezing surface. Under the extrusion of ice skate (05), the thin ice layer turns into ice flake and then falls from ice outlet (12) below evaporator. And the partial unfreezing water returns to the cold water tank through drain pan from water return pipe (09).

Flake ice machine 1 ton commercial ice maker machine

* All equipment is installed on one steel frame except the cooling tower so it's very convenient to install on spot and it can be put into use immediately after connecting it with the water and electricity resource; * The default cooling mode of each model is water-cooled, air-cooled or evaporative-cooled is available if clients ask for; * Compatible ice bins are available to supply, you can contact Linsky sales for details.
* Spared parts and accessories are offered free of charge for installation and operation.
Ice Machine packaging&Shipping
For Flake ice machine 1 ton commercial ice maker machine:
(1) Use wooden case packing
(2) Total two packages: ice machine + ice storage bin
Ice Machine Projects
Linsky 300kg/24hr flake ice machine to Vietnam in restaurant
The standard models of small capacity equip with ice bin. Please ask for it in your inquiry if you need one.
Linsky offers different looks ice bin for various applications.
Linsky 15Ton/24h flake ice machine to Algeria for frozen seafood
Faster ice Making /Lower power consumption.
Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running at
the lowest power consumption.Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat
transfer efficiency;
Directly liquid feeding, dry-type evaporation make simple, safe and reliable control.
Linsky 20Ton/24h flake ice machine to Mexico
Longer service life Lower future investment.
Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of
refrigerant.
Ice thickness can be varied by changing the speed of the rotor.
The fucture maintenance investment is lower.
About LINSKY Factory Introduction
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more. We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Related Products
1. Bitzer Compressor Unit 1.1 Cooling Type Bitzer Screw Compressor Unit 1.2 Freezing Type Bitzer Screw Compressor Unit 1.3 Cooling Type Bitzer Piston Compressor Unit 1.4 Freezing Type Bitzer Piston Compressor Unit 2. Hanbell Compressor Unit 2.1 Cooling Type Hanbell Screw Compressor Unit 2.2 Freezing Type Hanbell Screw Compressor Unit 2.3 Quick-freeze Type Hanbell Double-stage Screw Compressor Unit 3. FUSHENG Compressor Unit 3.1 Cooling Type FUSHENG Screw Compressor Unit 3.2 Freezing Type FUSHENG Screw Compressor Unit 3.3 Quick-freeze Type FUSHENG Double-stage Screw Compressor Unit 4. Indoor Compressor Condensing Unit 4.1 Indoor Bitzer Piston Compressor Condensing Unit 4.2 Indoor Copeland Piston Compressor Condensing Unit 4.3 Indoor GEA Piston Compressor Condensing Unit 4.4 Indoor Copeland Scroll Compressor Condensing Unit 4.5 Indoor Danfoss Scroll Compressor Condensing Unit 5. Outdoor Compressor Condensing Unit 5.1 Outdoor Bitzer Piston Compressor Condensing Unit 5.2 Outdoor Copeland Piston Compressor Condensing Unit 5.3 Outdoor GEA Piston Compressor Condensing Unit 5.4 Outdoor Copeland Scroll Compressor Condensing Unit 5.5 Outdoor Danfoss Scroll Compressor Condensing Unit 6. Small Outdoor Compressor Condensing Unit 6.1 Commercial Copeland Condensing Unit 7. Freon Pumps and Low-pressure Circulation Drums System 8. Ice Machine 8.1 Direct Cooling Block Ice Machine 8.2 Tube Ice Machine 8.3 Flake Ice Machine 8.4 Plate Ice Machine 8.5 Cube Ice Machine 9. Refrigeration Components 9.1 Air Cooling Fan 9.2 Air Cooling Condenser 9.3 Water Cooling Condenser 9.4 Evaporative Condenser 9.5 Liquid Receiver 9.6 Oil Segregator 9.7 Accumulator 9.8 Water Cooling Oil Cooler 9.9 Air Cooling Oil Cooler 10. Refrigeration accessories 10.1 O&F Refrigeration accessories 10.2 Danfoss Refrigeration accessories 10.3 Emerson Refrigeration accessories
FAQ
1. What should I prepare to buy the ice machine from you? (1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day? (2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory. (3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production. (4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation. 2. How to install the ice machine? (1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation. (2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation. 3. What if I buy your ice machine, but I cannot find the solution for the problem? All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
